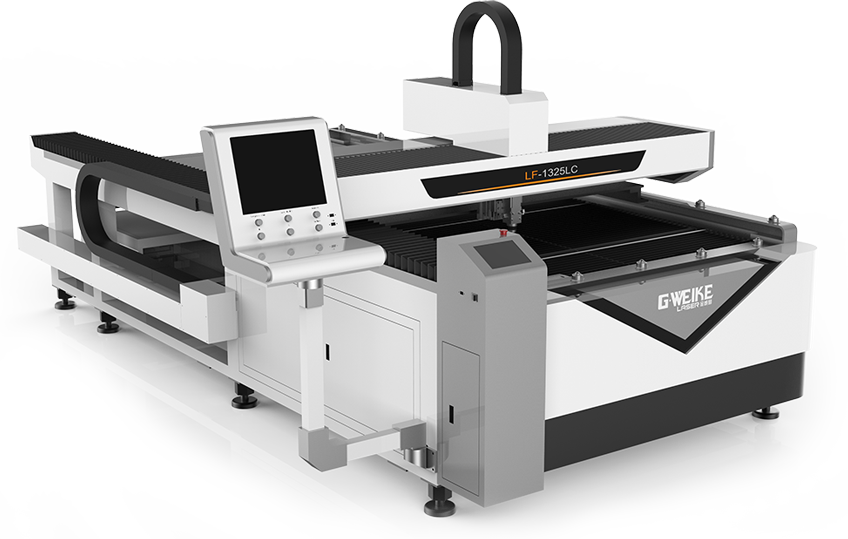

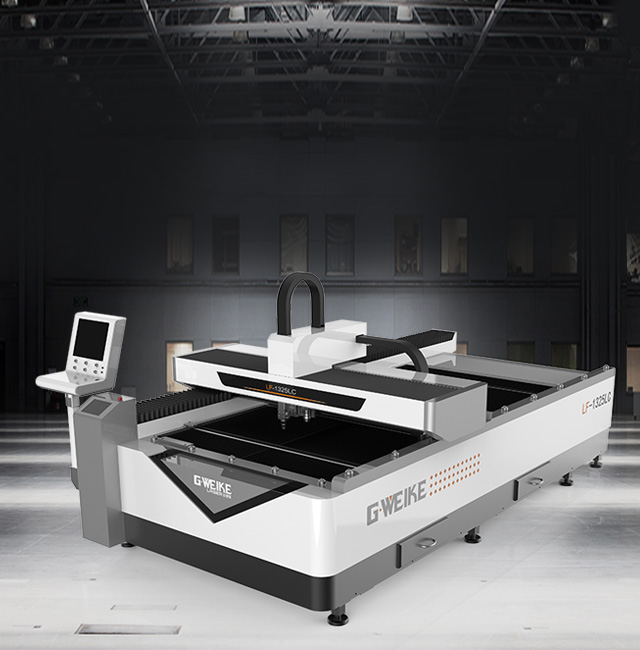

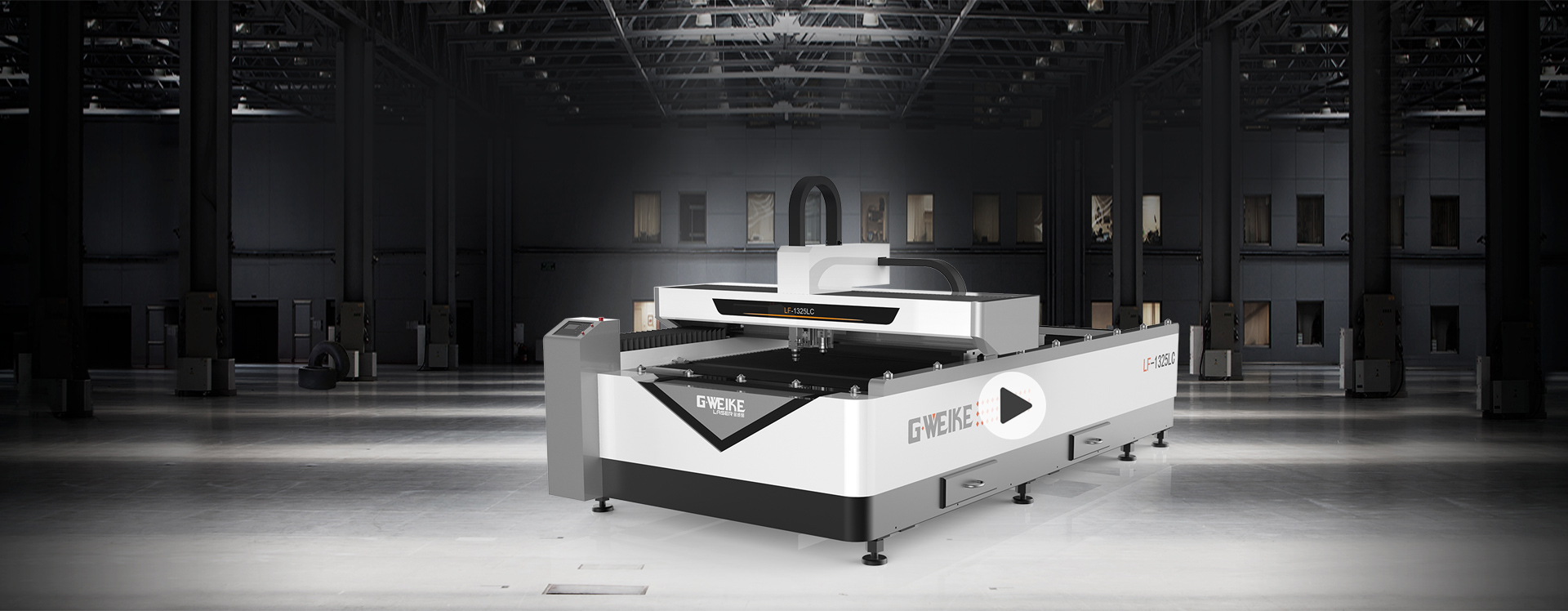

FIBER & CO2 DUAL USE LASER CUTTING MACHINE

The Third Generation Aviation Aluminum Gantry

Evolutionary history of gantry crossGantry

3rd Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

3ST Generation Aviation Aluminum Beam

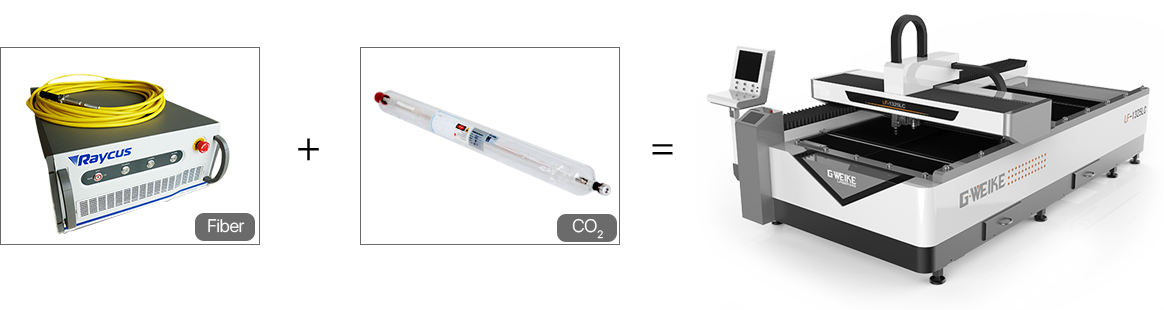

World-class Technology, Dual-use Machine

It has a broad cutting range, it can cut both metal and nonmetal materials, etc.

World-class Technology, Dual-use Machine
Auto focus cutting head

Cost Saving

  • One machine can save over 30% electricity and 50% space;
  • Effectively enhance productivity.

Transmission and Precision

G·WEIKE fiber laser cutting machine is equipped with imported TBI ball screw, Delta servo
motor and Hiwin guide rail. The positioning accuracy of the machine can be 0.02mm, to
ensure the cutting quality of metal and non-metallic materials.

Transmission and Precision

Technical Parameters

Machine model LF1325LC
Working area 2500*1300mm
Laser power 500w Fiber laser source   150w CO2 laser source
Cutting thickness 20mm (Depend on materials)
Positioning accuracy ±0.02mm
Max.Running Speed 30m/min
Operating temperature 0℃-40℃
Transmission Imported TBI ball screw
Specified voltage and frequency 220V 50Hz

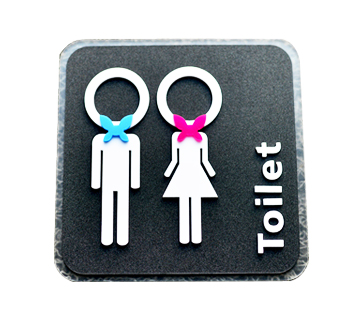

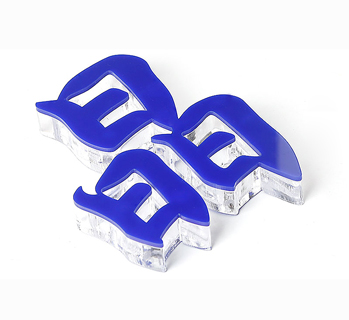

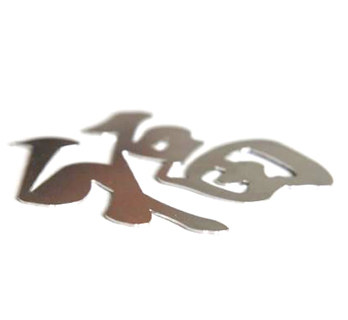

Industry Applications

Due to the versatility of the LF1325LC, it is play an important role in the cutting of sheet metal and non-metallic materials such as wood and Plexiglas-glass. For machines that require metal and non-metallic materials, this machine is the best choice.
Stainless steel, carbon steel, alloy steel copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, acrylic, MDF, Die board, etc.
