Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

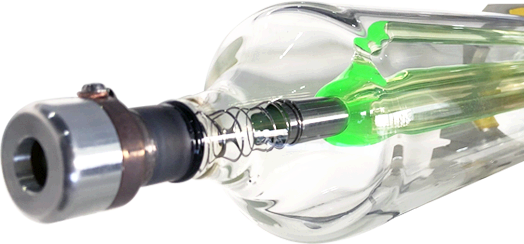

Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.
Convenient- Engineers can remotely control computers and machines, adjust parameters and solve problems.
Efficiency- One PC can control several machines.
U.S. optics from American Photonics. Proven 14% beam transmission improvement vs. other optics. High strength gold-plated lenses and aspheric focusing lenses made by II-VI Company, USA.
High focus, high transmittance. The lenses can not only ensure the quality of the machine but also make the optical system run a long time with high efficiency and low cost.
Lower noise, low vibration, running more smoothly, higher torque, higher acceleration, higher precision, better acceleration performance.
The fan can be started by one button. You can control the fan independently.
Both knife blade and honeycomb platforms for cutting and engraving.
Environmentally friendly and pollution-free laser can be directly used indoors.
Filter large particles in bags.
HEPA filtration larger than 0.03UM particle.
Activated carbon adsorption system.
|Laser - Type||Sealed CO2 laser tube|
|Laser Power||60W 80W 100W 130W 150W (Optional)|
|Cutting Area||1300mm x2500mm|
|Whole Machine Size||3000* 1600* 990mm|
|Cutting Speed||0 -24000mm/min|
|Resetting Positioning Accuracy||±0.1mm|
|Working Voltage||AC 110-220V ±10%,50 60Hz|
|Minimum Shaping Character||English 1x1mm|
|Graphic Format Supported||BMP, PLT, DST, DXP, and AI|
|Cooling Mode||Water-cooling and protection system|
|Auxiliary Equipments||Exhaust-fans, air-exhaust pipe|
|Controlling Software||DSP control system|
|Compatible Software||CorelDraw AutoCAD Photoshop|
The machine can satisfy the demands of cutting and engraving large quantity of clothing fabrics, leather, wood, acrylic, paper and other industries.
