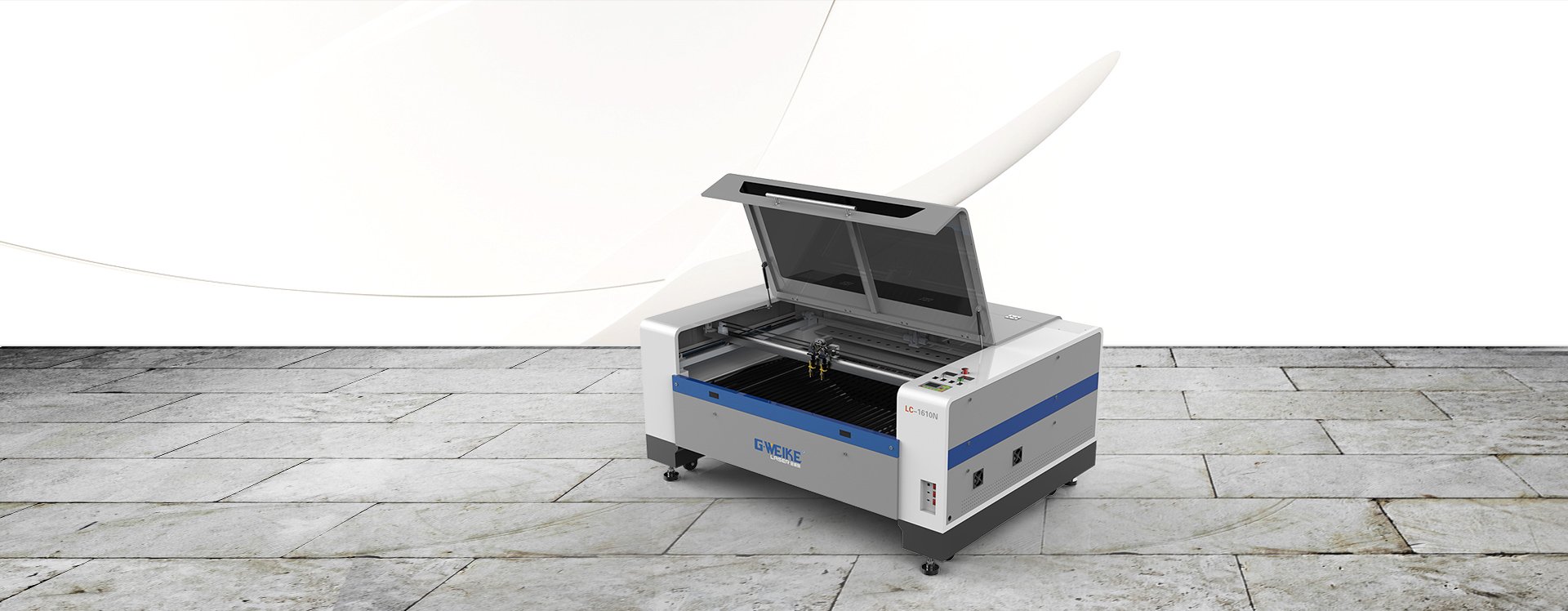

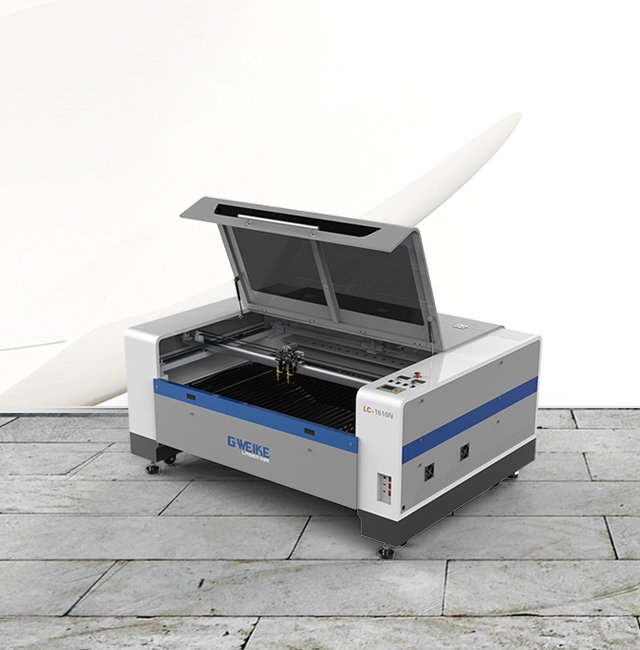

LC1610N

CO2 Laser Cutting Machine

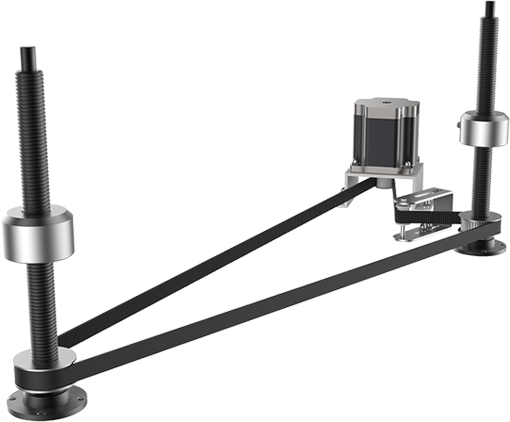

Electronic lifting

Electronic lifting

The machine can automatic adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.

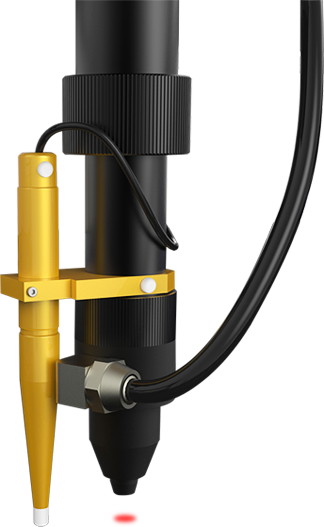

Automatic Focusing

Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.

Automatic Focusing

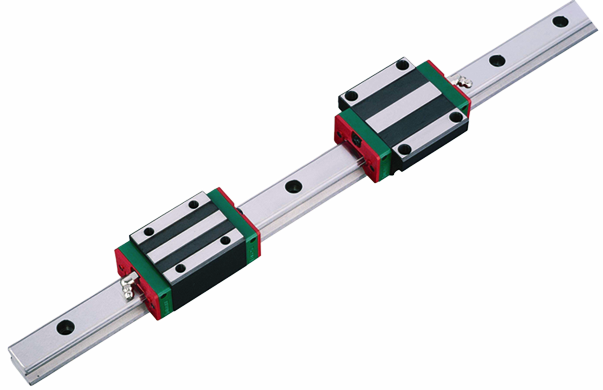

Taiwan Hiwin Linear Guide Rail

Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

Taiwan Hiwin Linear Guide Rail

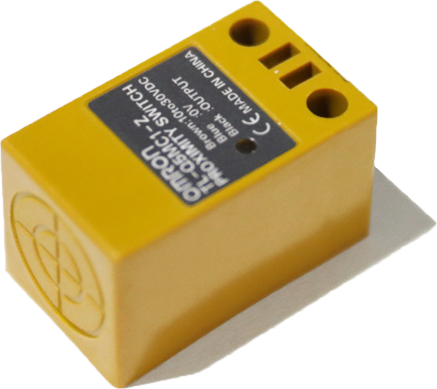

Japan OMRON Electronic Component

Japan OMRON

Electronic Component

Technical Parameters

Laser - Type Sealed CO2 laser tube
Laser Power 80w 100w 130W (optional)
Working Area 1600mm×1000mm
Cutting Speed 0-36000mm/m
Work Platform Crawler type work platform
Working Speed Adjustable
Position Accuracy ±0.1mm
Control System DSP DSP control system in USB mode
Cooling Mode Constant temperature water-cooling
Working Voltage AC220V±5% / 50HZ
Graphic Format Supported AI BMP PLT DXF DST
Operating Temperature 0°C-40°C
Operating Humidity Free of condensed water
Gross Power  ≤2000W

Application Industry

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
