It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

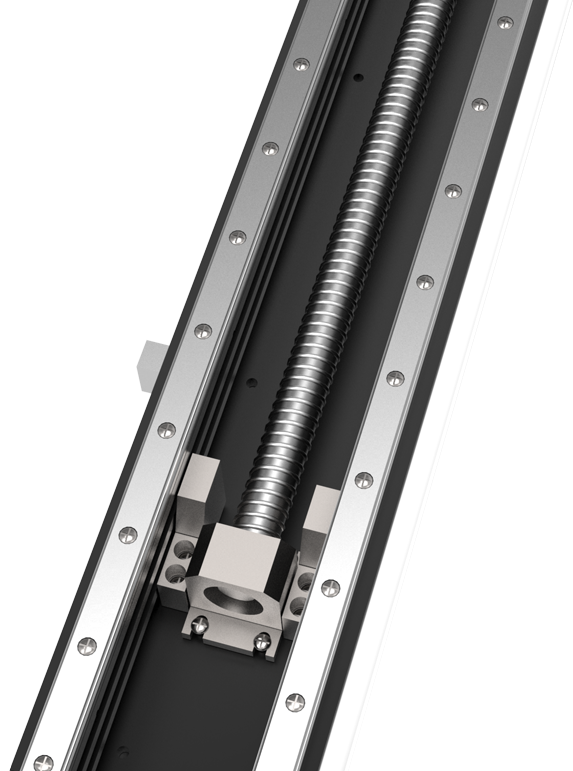

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.
G.WEIKE fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the repeat positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 0.5G. The working life is more than 10 years.
|Laser power||500W 750W 1000W(Optional)|
|Repeat positioning accuracy||±0.02mm|
|Transmission mode||Grinding precision screw drive|
|Specified voltage and frequency||220V/50Hz/60Hz/60A|

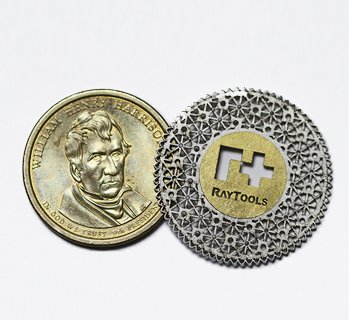

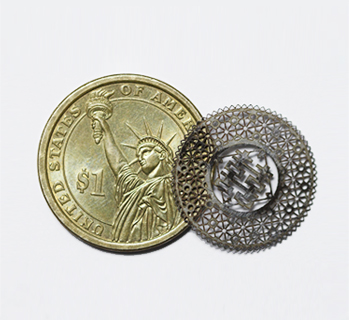

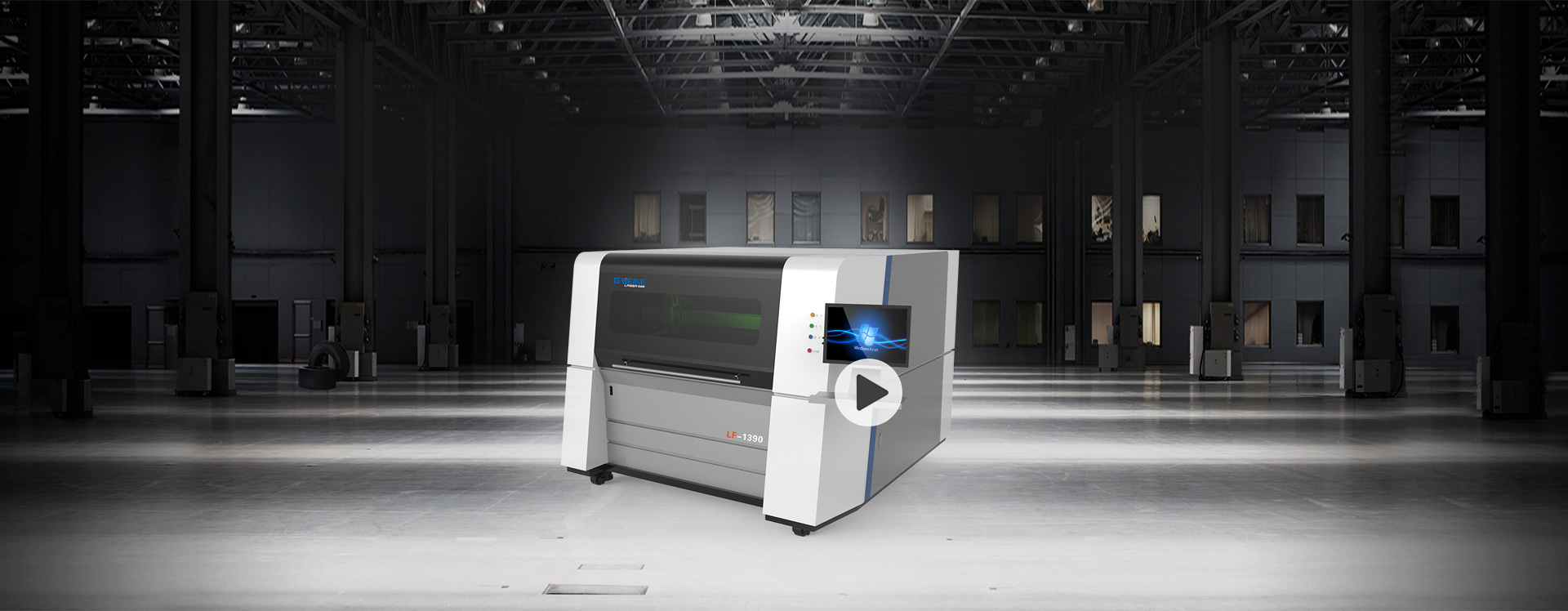

LF1390 is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries,
which has high requirements on the cutting accuracy.
Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.
