It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

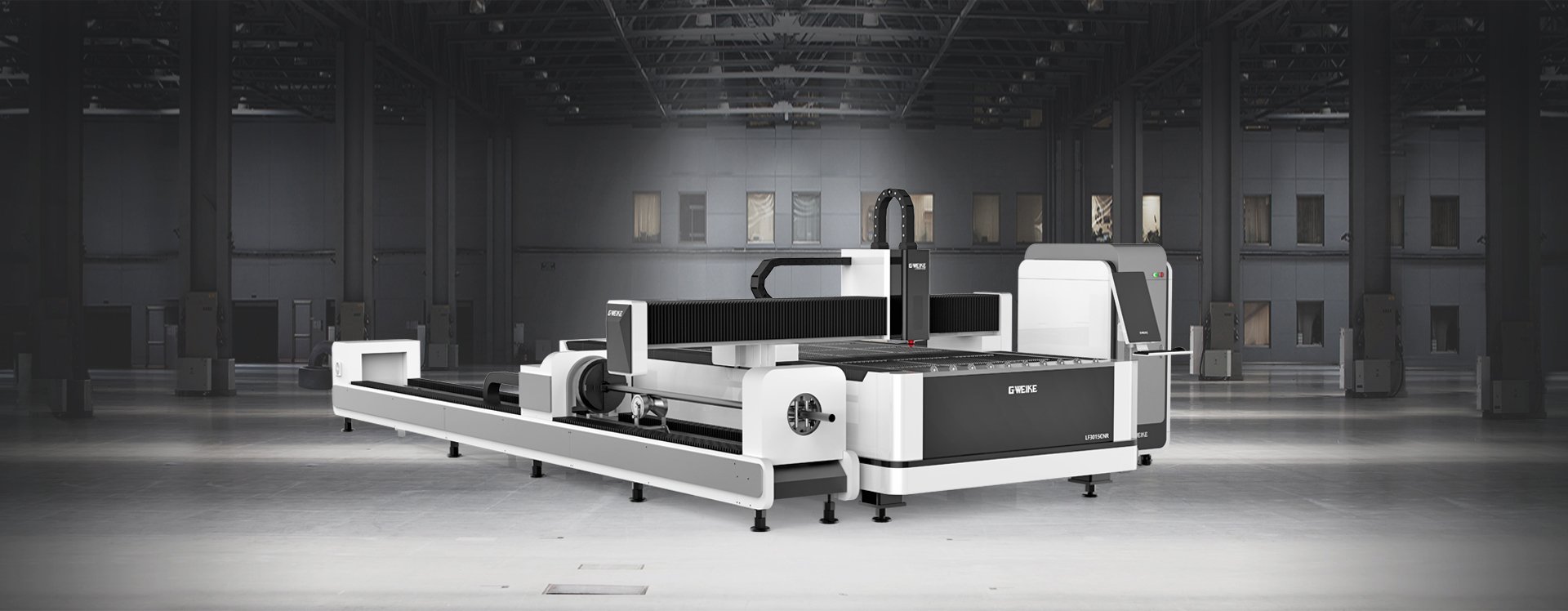

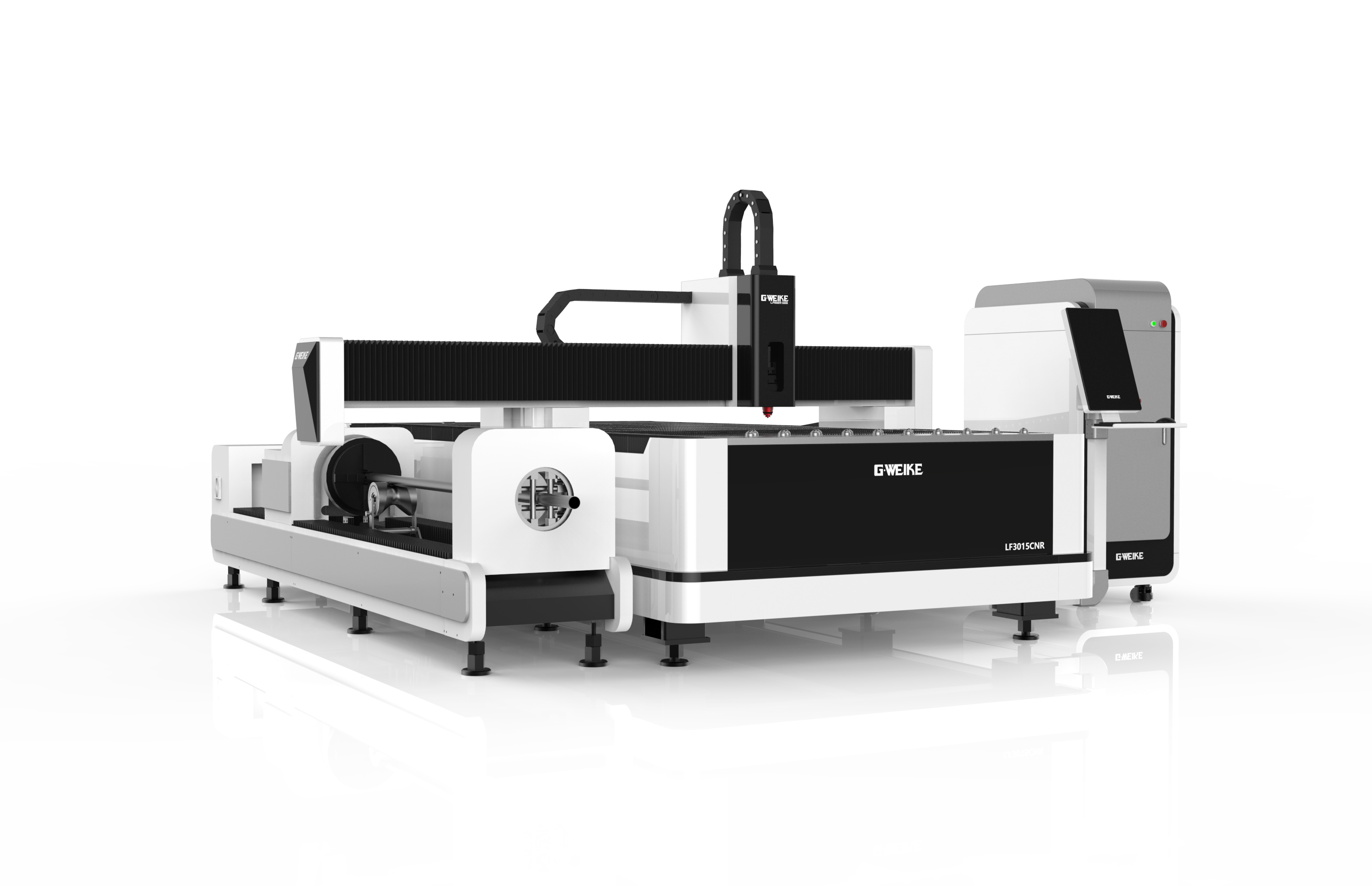

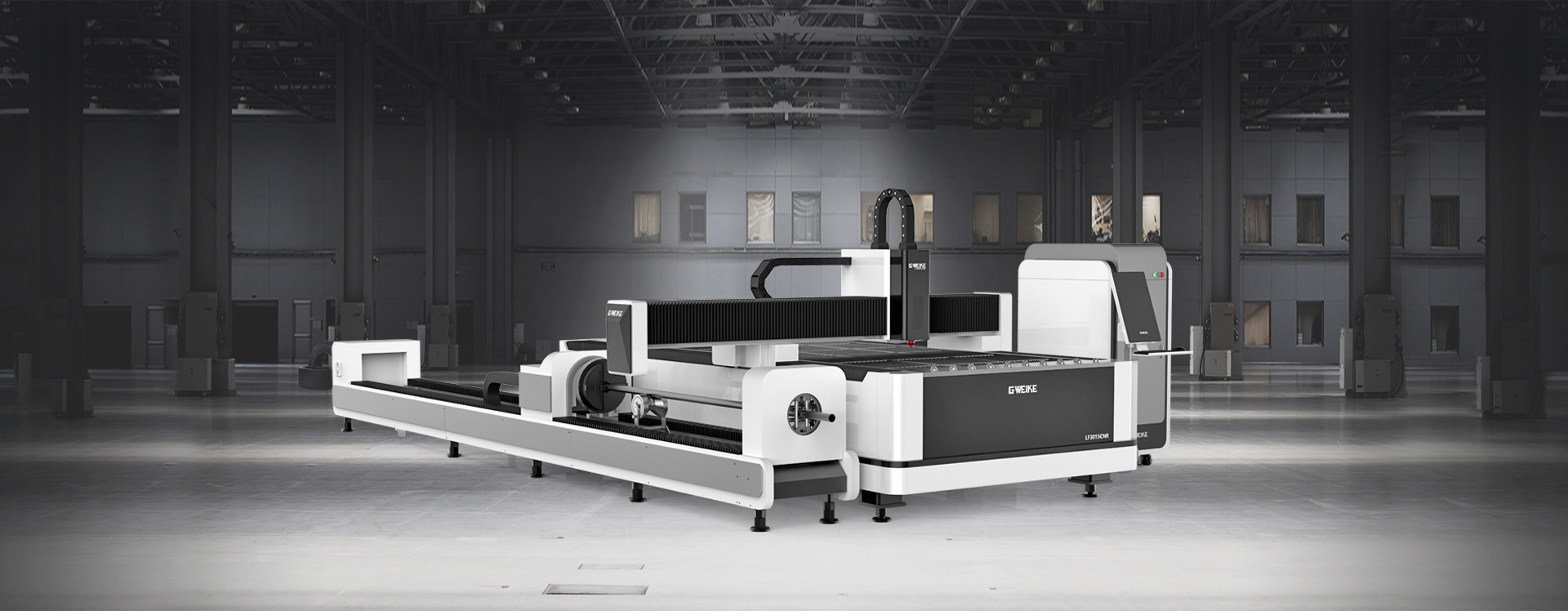

3015CR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.

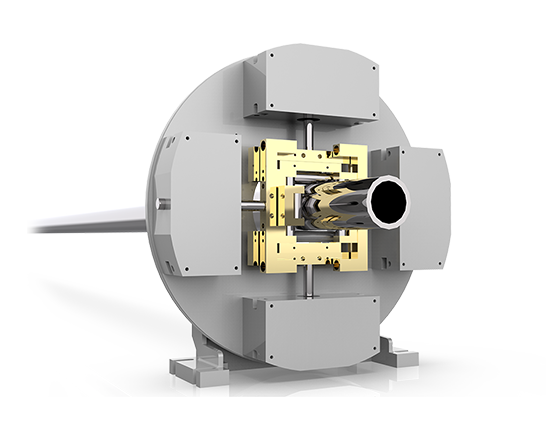

It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

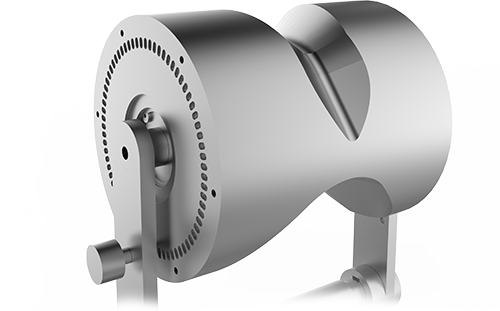

It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
The internal structure of the bed adopts the aircraft metal honeycomb structure, which is welded by a number of rectangular tubes. Stiffeners are arranged inside the tubes to increase the strength and tensile strength of the bed, it also increases the resistance and stability of the guide rail so as to effectively avoid the deformation of the bed.
G·WEIKE fiber laser cutting machine is equipped with German Atlanta rack, Japanese Yaskawa motor and German Neugart reducer. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1.5G. The working life is up to more than 10 years.
|Laser power||1000W 2000W 3000W 4000W 6000W 8000W(Optional)|
|Working area||3000mm x 1500mm|
|Repeat positioning accuracy||±0.02mm|
|Specified voltage and frequency||380V/50Hz/60Hz/60A|
Since sheet and pipe integrated design, Industry adaptability of LF3015CR
has been greatly enhanced, including petroleum and pipe material, fitness
equipment and other pipe material mainly mechanical processing, automotive
manufacturing, machine cabinet and other board materials mainly mechanical

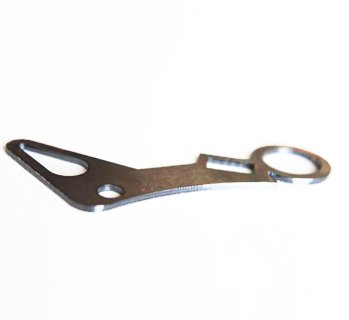

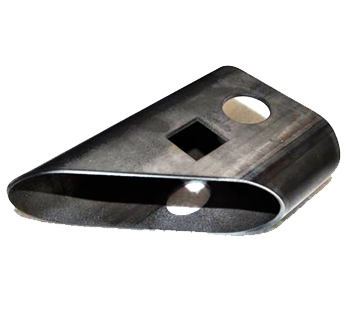

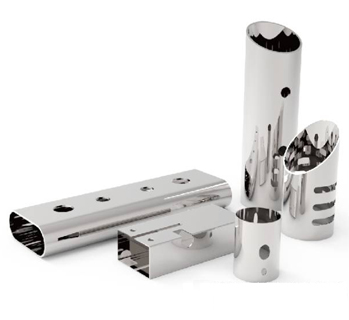

Specially used for cutting 0.5-5mm carbon steel sheets (pipes), 0.5-2.5mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.
