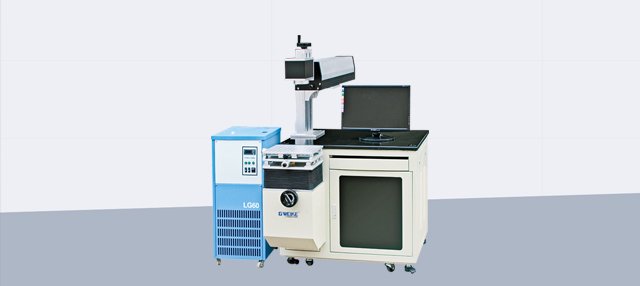

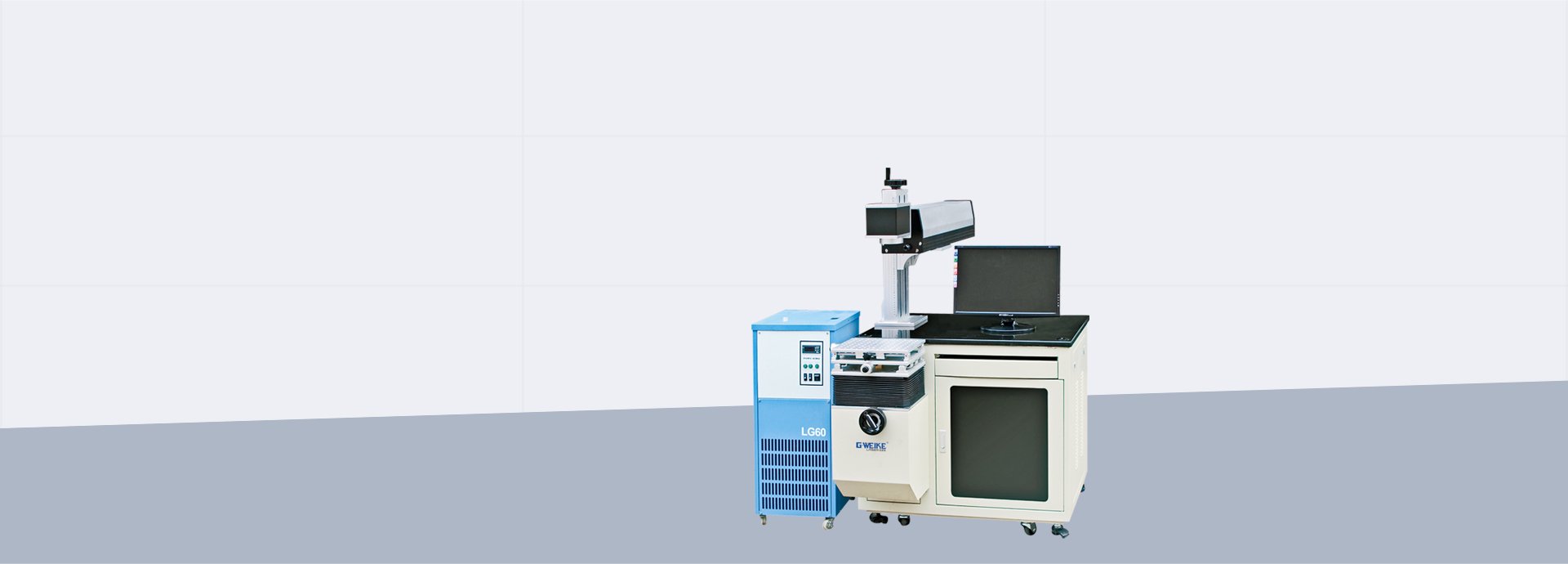

LG60

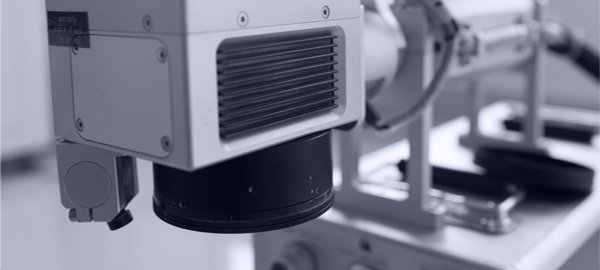

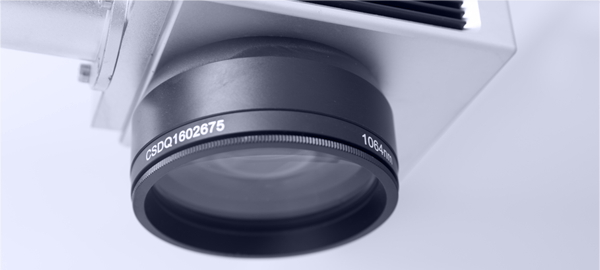

Co2 laser marking machine is the new generation laser marking system of our company.utilize DC excited seal CO2 laser, The tube can work more than 35,000 hours. The machine equipped with high speed scaning vibrating lens and extending focusing system, high stability, anti-intervention industrial computer system, high precise vertical up-and-down working table. The machine can continue woking 24 hours in high stability, high precision, high speed.the paten software bases on windows system, with easy operation, stable motion and clear mark.

Technical Parameters

Max.Laser Power (W) 60W 80W 100W 130W (optional)
Laser Wave-Length (um) 10.6
Laser Repetition Frequency ≤25kHz
Standard Marking Area (mm) 200mm x 200mm 300mm x 300mm
marking Depth (mm) ≤3mm
Marking Speed (mm) ≤7000mm/s
Min.Line Width (mm) 0.2mm
Min. Character Size (mm) 0.5mm
Working Area 600* 400mm
Repetition Accuracy (mm) ±0.01
Power Consumed (kw) <1200W
Electrical Voltage 220V 50Hz 8A
Cooling System Water cooling
Software Win XP+EZCAD marker system
Operating Temperature 0℃-30℃

Application Industry

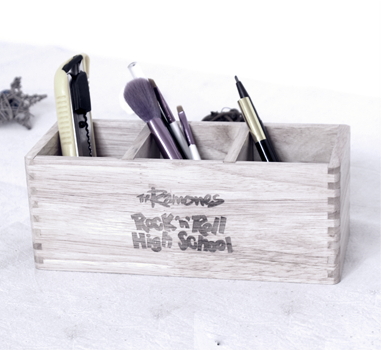

Wood products, paper, leather, cloth, organic glass, epoxy resin, acrylic, unsaturated polyester resin and other non-metal materials.
