HANDHELD

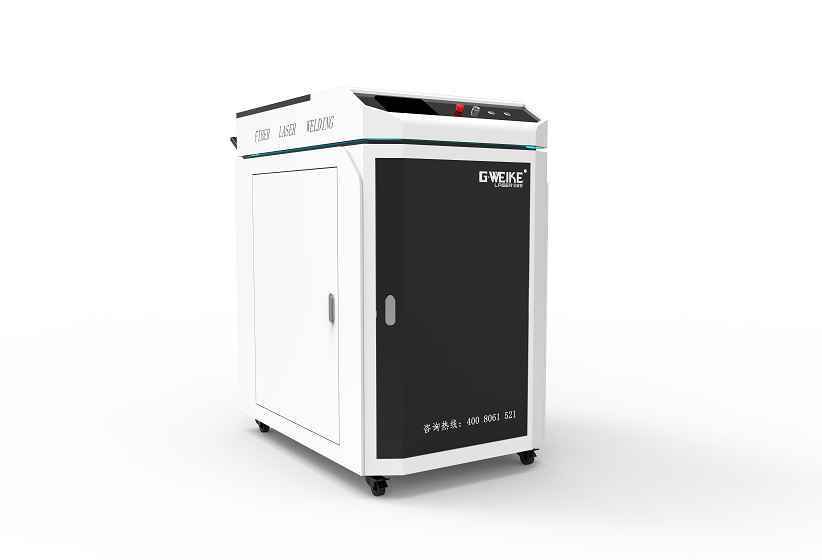

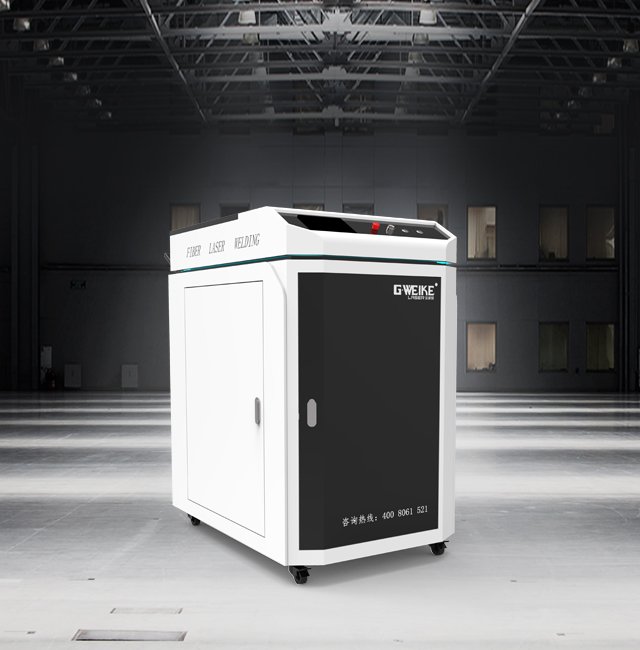

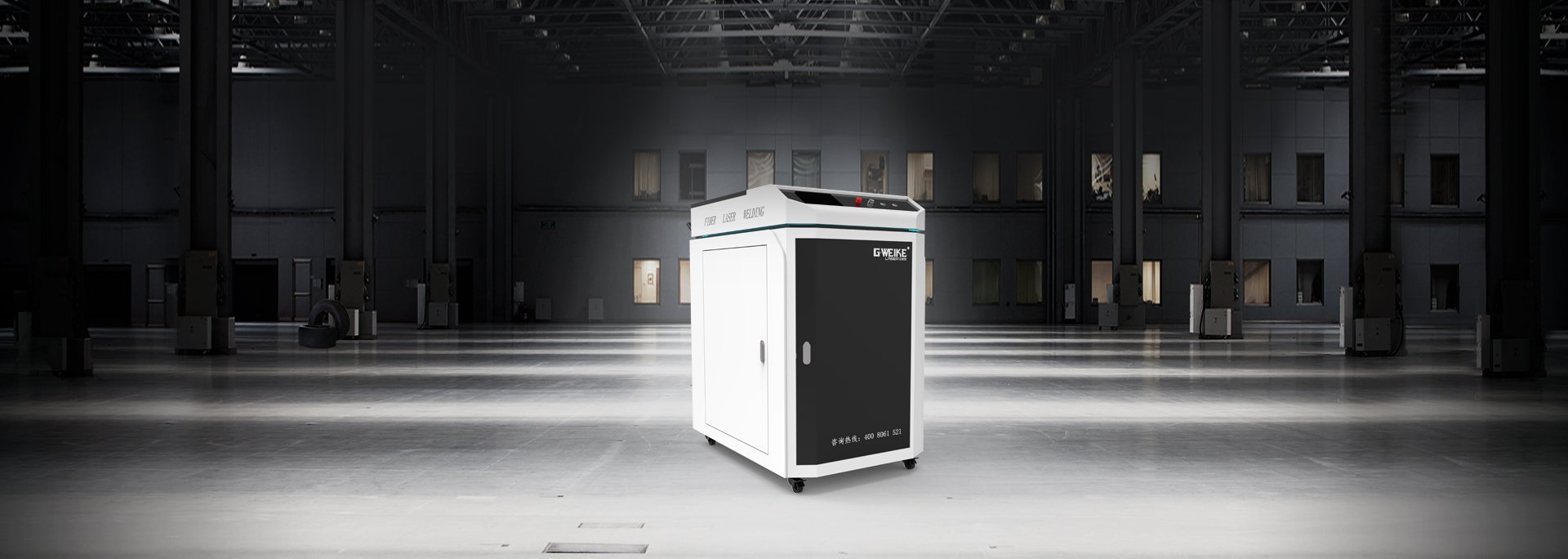

Handheld Laser Welding Machine

Weldable iron plate / stainless steel / galvanized sheet

Easy Operation

The fiber laser welding machine features in simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials, fiber laser welding machine can perfectly replace the traditional argon arc welding and electric welding technology.

Easy Opetation

Head for laser welder machine

Hand-held swing welding mode, light and flexible. Interactive control system; makes the light spot larger, the welding seam better formed; lighter weight; ergonomic design of the laser welder machine can be equipped with a variety of angle nozzles to meet the welding needs of different products.

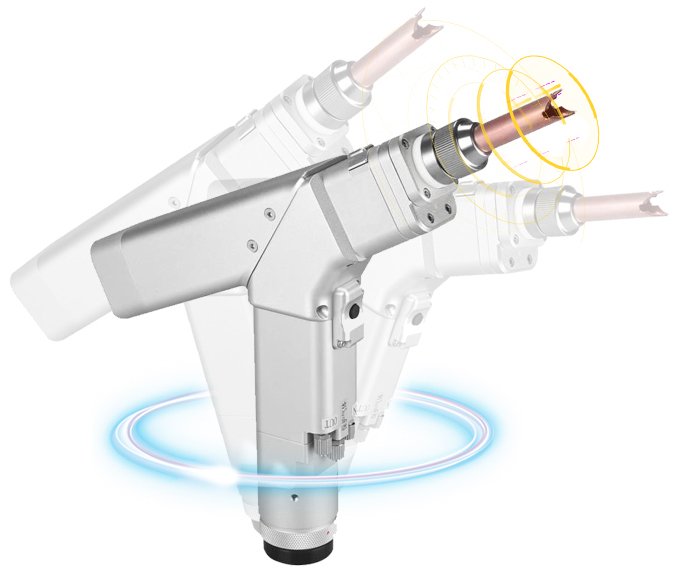

360 Degree Welding

360 Degree Welding

After the laser beam is focused, a small spot can be obtained, which can be accurately positioned and used in the group welding of micro and small size workpieces for mass production. The handheld laser welding machine mainly for the welding of thin-walled materials and precision parts, it can realize spot welding, butt welding, stack welding, sealing welding, etc., high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, no need to be processed after welding or simply processed.

Industry Applications

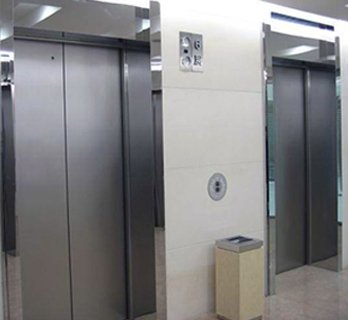

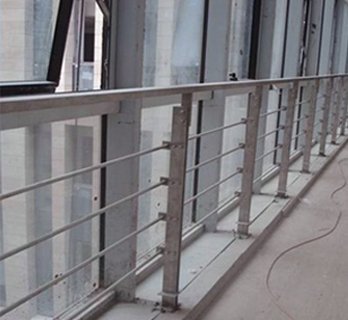

The handheld laser welding machine widely used in cabinet kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel furnishings and other industries.

Technical Parameters

Machine Model Handheld metal laser welding machine
Laser Power 1000W, 2000W, 3000W(optional)
laser wave length 1070 NM
Fiber length Standard10M / Maximum 15M
Welding speed range 0~120 mm/s
Cooling chiller Industrial water chiller
Working environment temperature range 15~35 ℃
Welding thickness recommendations 0.5-3mm
working voltage 220 V

Premium Related Products

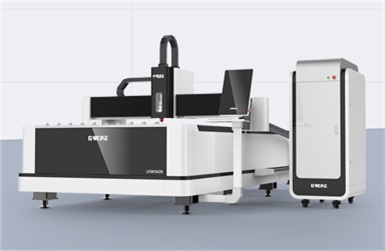

LF3015CN Industrial Fiber Laser Cutting Machine
